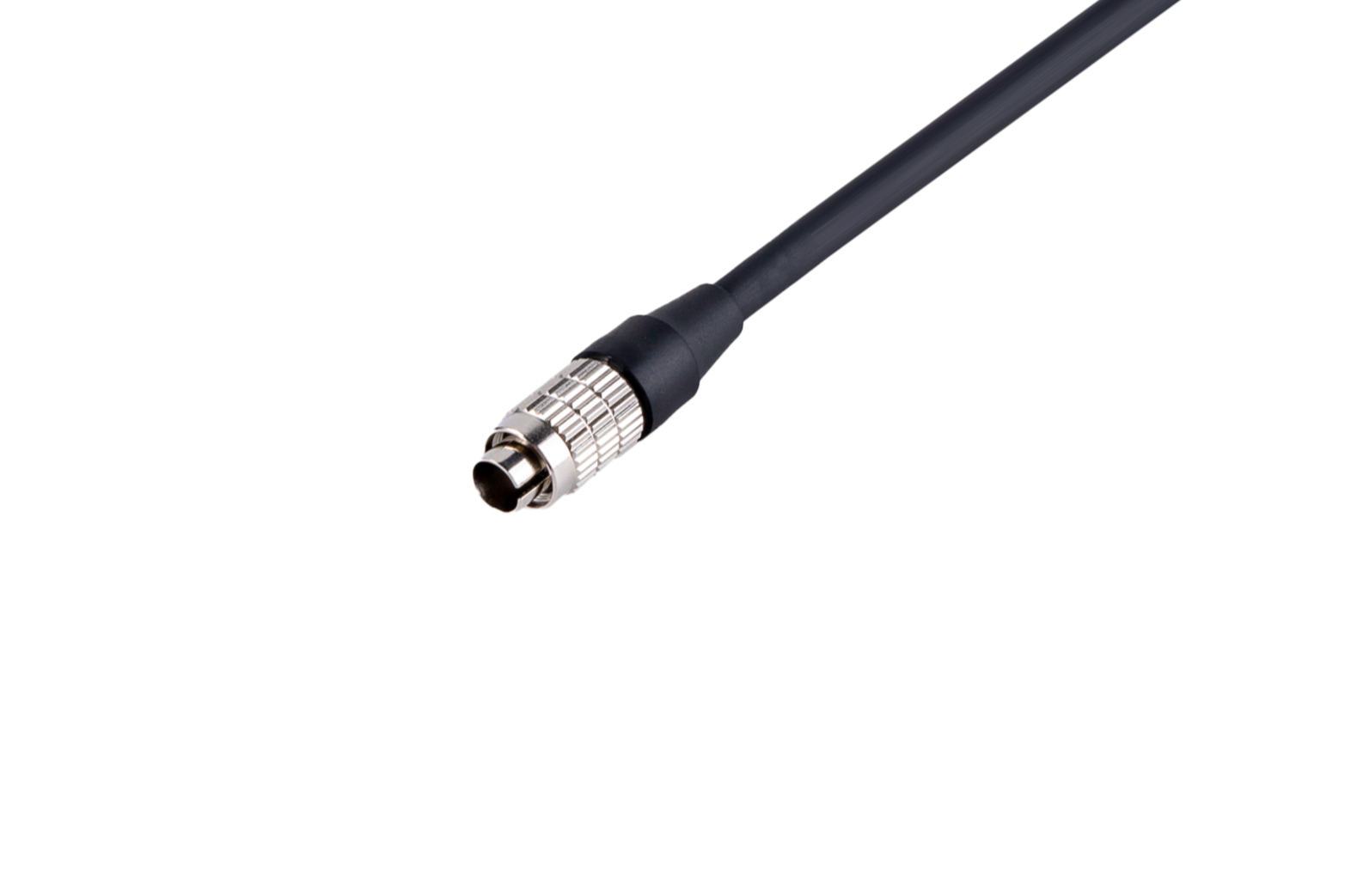

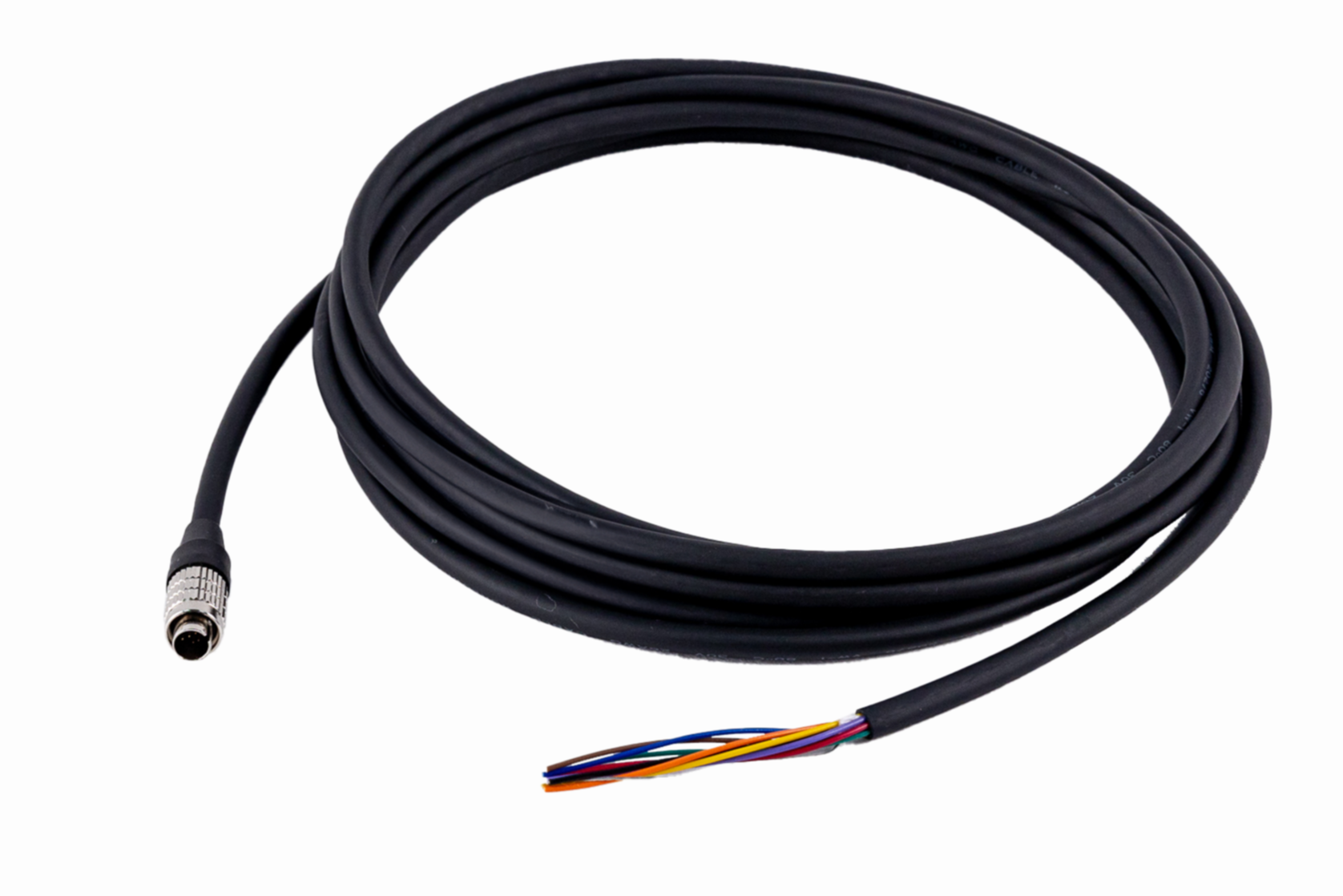

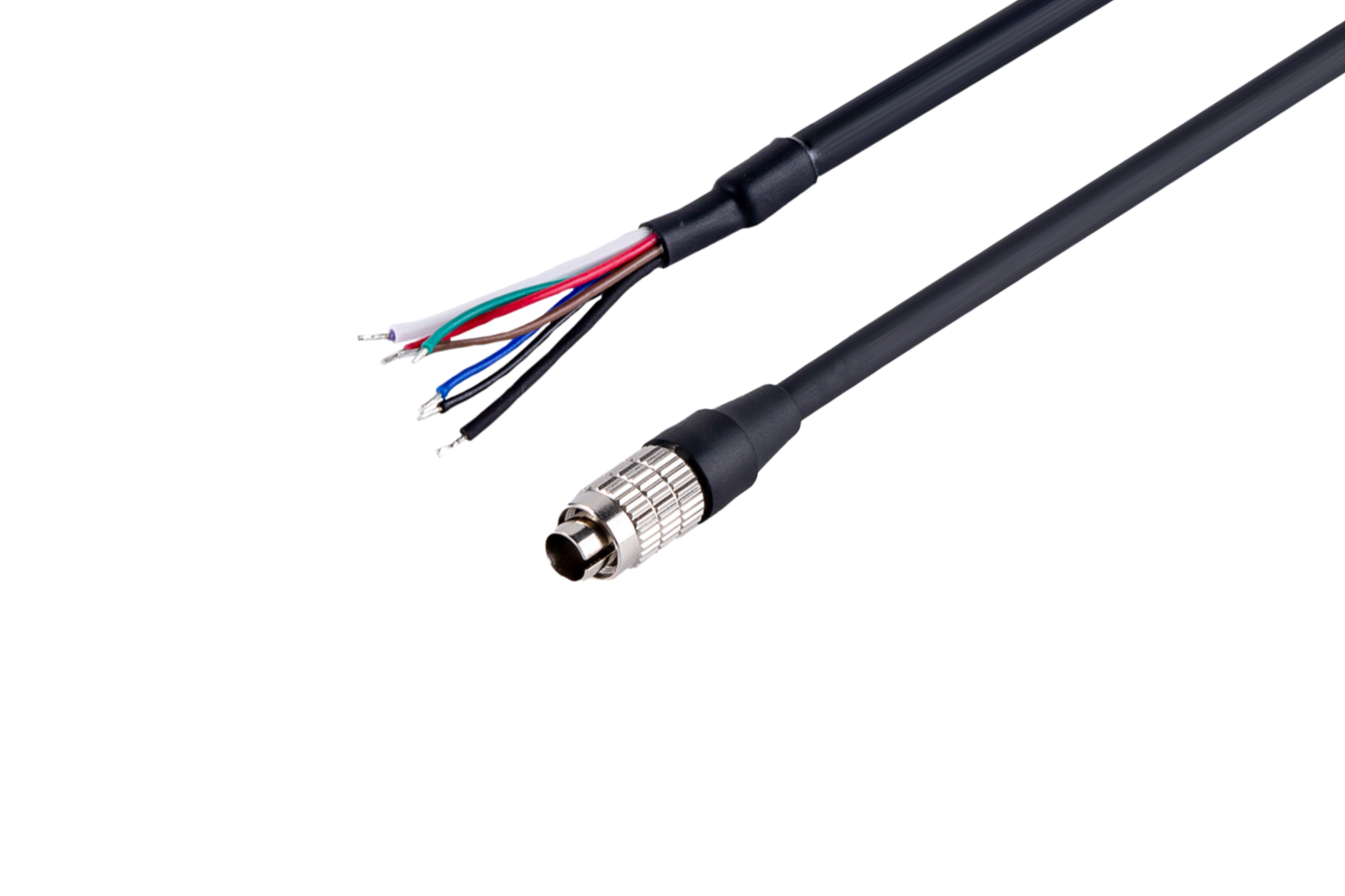

I/O cable High Flex/HR25 connector to open

I/O cable High Flex/HR25 connector to open

Trigger cable-HR25/M08P/F-S&T-3M-HF(Black,OD5.2)

Shipping only for Japan

¥12,050 JPY
¥12,050 JPY
Sale Sold out
Taxes included.
Length

Stock: 10 in stock

Transit Time

3-5 days

General Specifications

• Assembly Method: Plug assembly with rubber boot
• Cable Color & Material: BLACK & PVC
• Length: 3M
• All parts comply with RoHS 2
• Flammability rating of the plastic housing of the connectors, case & cable jacket: UL 94 V-1

View full details

Product Features and Specifications

Features

1. Specifically designed for industrial machine vision systems
2. Low DC resistance to minimize the voltage drop
3. Good flexibility for robotic application
4. RoHS / REACH / UL compliant
5. This product offers diverse length, shielding, color, connector type and angled connector options. ( For customized service, please fill out the inquiry form in Contact Us page. We will reply you soon.)

Specifications


  Connector Interface   HR25 8 pin
  Rated Power   30V / 1A
  Max. Length   10m
  Operation and Storage Temperature
Operation Temperature   0 °C ~ 60 °C
Storage Temperature   -20 °C ~ 70 °C
  Operation and Storage Humidity
Operation Humidity   10% ~ 90%
Storage Humidity   10% ~ 90%

Applications

1. Automatic optical inspection
2. Image inspection application
3. Visual positioning application
4. Object measurement/ Sorting application
5. Suitable for Basler, Dalsa, FLIR cameras etc.

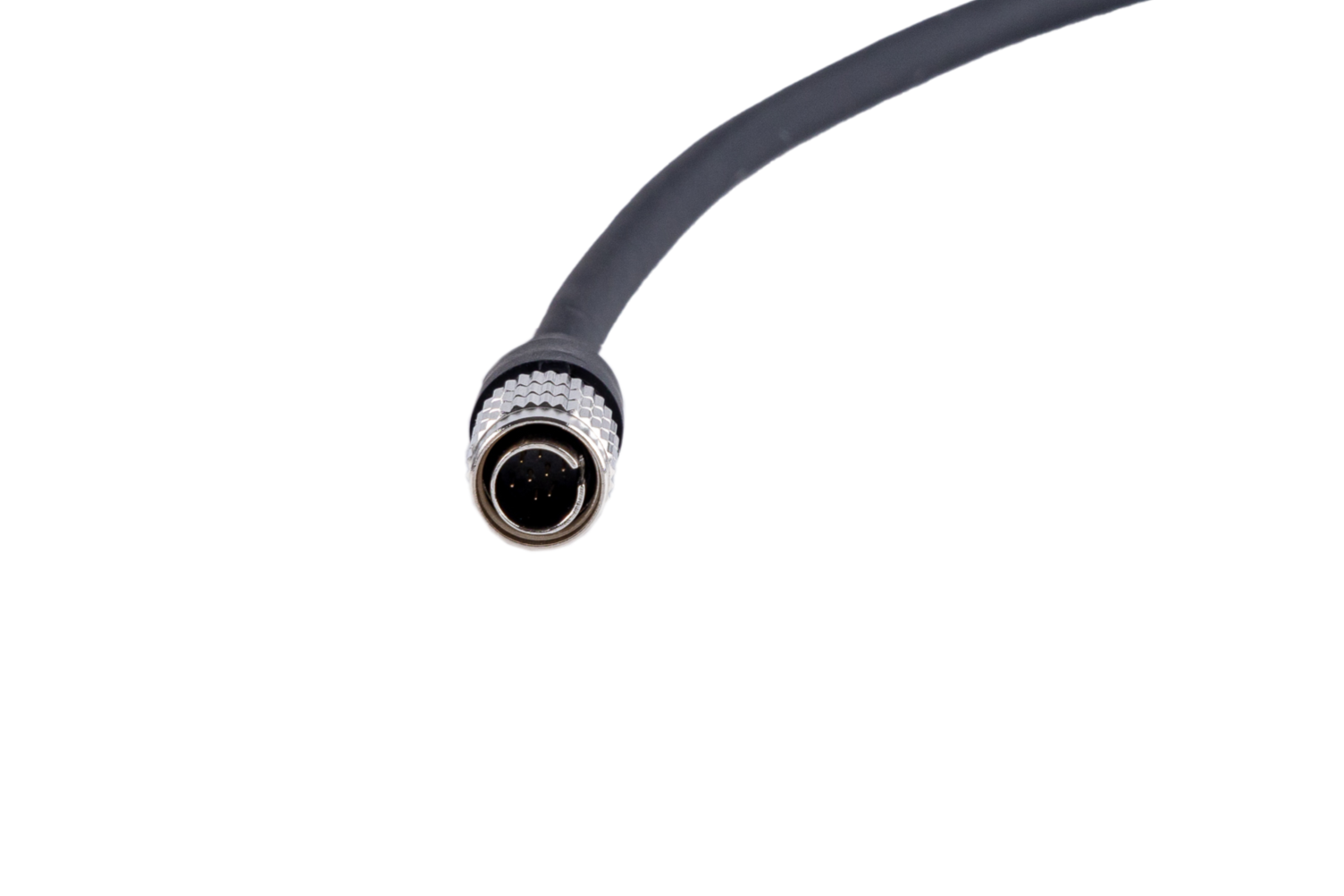

Front View of Connector

Certifications
